2. Background

In this section we discuss extensibility mechanisms for file systems, what would be required for such file systems to support SCAs, and other systems that provide some support for compression SCAs.

2.1 Stacking Support

Stackable file systems allow for modular, incremental development of file systems by layering additional functionality on another file system [13,15,21,24]. Stacking provides an infrastructure for the composition of multiple file systems into one.

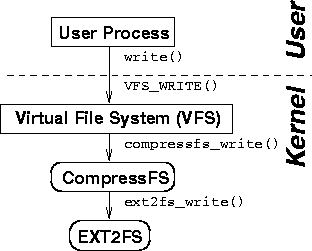

Figure: An example stackable compression file system. A system call is translated into a generic VFS function, which is translated into a file-system specific function in our stackable compression file system. CompressFS then modifies (compresses) the data passed to it and calls the file system stacked below it with the modified data.
\epsfig{file=figures/scafs.eps, width=2.75in}

Figure 1 shows the structure for a simple single-level stackable compression file system called CompressFS. System calls are translated into VFS calls, which in turn invoke their CompressFS equivalents. CompressFS receives user data to be written. It compresses the data and passes it to the next lower layer, without any regard to what type of file system implements that layer.

Stackable file systems were designed to be modular and transparent: each layer is independent from the layers above and below it. In that way, stackable file system modules could be composed together in different configurations to provide new functionality. Unfortunately, this poses problems for SCAs because the decoded data at the upper layer has different file offsets from the encoded data at the lower layer. CompressFS, for example, must know how much compressed data it wrote, where it wrote it, and what original offsets in the decoded file did that data represent. Those pieces of information are necessary so that subsequent reading operations can locate the data quickly. If CompressFS cannot find the data quickly, it may have to resort to decompression of the complete file before it can locate the data to read.

Therefore, to support SCAs in stackable file systems, a stackable layer must have some information about the encoded data--offset information. But a stackable file system that gets that information about other layers violates its transparency and independence. This is the main reason why past stacking works do not support SCAs. The challenge we faced was to add general-purpose SCA support to a stacking infrastructure without losing the benefits of stacking: a stackable file system with SCA support should not have to know anything about the file system it stacks on. That way it can add SCA functionality automatically to any other file system.

2.2 Compression Support

Compression file systems are not a new idea. Windows NT supports compression in NTFS [18]. E2compr is a set of patches to Linux's Ext2 file system that add block-level compression [2]. Compression extensions to log-structured file systems resulted in halving of the storage needed while degrading performance by no more than 60% [3]. The benefit of block-level compression file systems is primarily speed. Their main disadvantage is that they are specific to one operating system and one file system, making them difficult to port to other systems and resulting in code that is hard to maintain.

The ATTIC system demonstrated the usefulness of automatic compression of least-recently-used files [5]. It was implemented as a modified user-level NFS server. Whereas it provided portable code, in-kernel file systems typically perform better. In addition, the ATTIC system decompresses whole files which slows performance.

HURD [4] and Plan 9 [19] have an extensible file system interface and have suggested the idea of stackable compression file systems. Their primary focus was on the basic minimal extensibility infrastructure; they did not produce any working examples of size-changing file systems.

Spring [14,16] and Ficus [11] discussed a similar idea for implementing a stackable compression file system. Both suggested a unified cache manager that can automatically map compressed and uncompressed pages to each other. Heidemann's Ficus work provided additional details on mapping cached pages of different sizes.2 Unfortunately, no demonstration of these ideas for compression file systems was available from either of these works. In addition, no consideration was given to arbitrary SCAs and how to efficiently handle common file operations such as appends, looking up file attributes, etc.
