Accurate and Efficient Replaying of File System Traces

Nikolai Joukov, Timothy Wong, and Erez Zadok
Stony Brook University



Replaying traces is a time-honored method for benchmarking, stress-testing, and debugging systems-and more recently-forensic analysis. One benefit to replaying traces is the reproducibility of the exact set of operations that were captured during a specific workload. Existing trace capture and replay systems operate at different levels: network packets, disk device drivers, network file systems, or system calls. System call replayers miss memory-mapped operations and cannot replay I/O-intensive workloads at original speeds. Traces captured at other levels miss vital information that is available only at the file system level.
We designed and implemented Replayfs, the first system for replaying file system traces at the VFS level. The VFS is the most appropriate level for replaying file system traces because all operations are reproduced in a manner that is most relevant to file-system developers. Thanks to the uniform VFS API, traces can be replayed transparently onto any existing file system, even a different one than the one originally traced, without modifying existing file systems. Replayfs's user-level compiler prepares a trace to be replayed efficiently in the kernel where multiple kernel threads prefetch and schedule the replay of file system operations precisely and efficiently. These techniques allow us to replay I/O-intensive traces at different speeds, and even accelerate them on the same hardware that the trace was captured on originally.

1  Introduction

Trace replaying is useful for file system benchmarking, stress-testing, debugging, and forensics. It is also a reproducible way to apply real-life workloads to file systems. Another advantage of traces is their ease of distribution.
For benchmarking, synthetically generated workloads rarely represent real workloads [42]. Compile benchmarks [14] put little load on the file system and are not scalable [6]. Real workloads are more complicated than artificially created ones, so traces of real file system activity make for better test workloads. They represent the actual file system workloads and can be scaled as needed. In addition to scaling, captured traces can be modified in many ways before being replayed. For example, modification of the disk block locations can help to evaluate new disk layout policies [27]. Sometimes trace replaying is used to test a target file system with a synthetic workload for which application reproducibility is difficult. One of the most common examples is the replaying of TPC [35] traces on file systems, because running the actual benchmark is complicated and requires a database system. Also, replaying traces that were captured by others allows a fair comparison of file systems. Finally, trace replaying is an accurate method to prepare a file system for benchmarking by aging it [31].
Synthetic benchmarks may be more predictable than real-life workloads, but they do not exercise many possible file system operation sequences. Replaying can be used to stress test a file system under practical conditions.
Trace replaying allows for selectively replaying portions of a trace. This is useful to narrow down the search for problems during debugging. Precise timing and minimal influence on the system being tested are key requirements to reproduce the exact timing conditions.
Replaying file system traces can be considered a form of fine-grained versioning. Existing versioning file systems [32,20] cannot reproduce the timing and in-memory conditions related to file system modifications. This makes trace replaying a better choice for forensic purposes. Replaying traces back and forth in time can be useful for post-mortem analysis of an attack.
File system traces can be captured and replayed at different logical levels: system calls, the Virtual File System (VFS), the network level for network file systems, and the driver level. The easiest way to collect and replay file system traces is by recording and reissuing system calls entirely from user mode. Unfortunately, this method does not capture memory-mapped file system operations. This was not a significant problem decades ago but nowadays applications perform a large portion of their file system interactions via memory-mapped operations rather than normal reads and writes [29]. System call replayers have non-zero overheads that do not allow them to replay high I/O rates of high-performance applications, or spikes of activity for applications that may issue most of their I/O requests at low rates.
Several researchers captured file system activity at the VFS level for Linux [2] and Windows NT [37,29]. However, no one has replayed traces at the VFS level before.
Network tracers cannot capture the requests satisfied from the client side or file system caches. Device driver tracers capture raw disk requests and therefore cannot distinguish between file system meta-data events (e.g., pathname related calls) and data-related events. Therefore, network level and driver level replaying are not comprehensive enough for the evaluation of an entire file system, and they are primarily suitable for replaying at the same level where they captured the trace. Nevertheless, both have their uses. For example, network trace replaying is suitable for the evaluation of NFS servers; and driver-level replayers are useful to evaluate physical disk layouts. Also, both techniques have lower overheads because they can use the CPU time that is normally spent by client-side applications to prepare events for replaying; this makes network and device-driver replayers efficient and able to replay high rates of I/O accurately.
We have designed the first VFS-level replayer which we call Replayfs. It replays traces captured using the Tracefs stackable file system [2]. The traces are preprocessed and optimized by our user-level trace compiler. Replayfs runs in the kernel, directly above any directory, file system, or several mounted file systems. It replays requests in the form of VFS API calls using multiple kernel threads. Replayfs's location in the kernel hierarchy allows it to combine the performance benefits of existing network and driver-level replayers with the ability to replay memory-mapped operations and evaluate entire file systems. Memory-mapped operations can be easily captured and replayed at the VFS level because they are part of the VFS API, but they are not a part of the system-call API. Replayfs uses the time normally spent on context switching, and on verifying user parameters and copying them, to prefetch and schedule future events. In addition, Replayfs saves time between requests by eliminating data copying between the kernel and user buffers.
User-mode tools cannot replay the highest possible I/O rates and spikes of such activity because due to their overheads. This is ironic because that is exactly the activity that is crucial to replay accurately. Replayfs can replay high I/O rate traces and spikes of activity even faster than the original programs that generated them, on exactly the same hardware. For example, Replayfs can replay read operations 2.5 times faster than is possible to generate them from the user level. This allows Replayfs to replay the workload accurately with the original event rates.
The rest of this paper is organized as follows. Section 2 describes our capturing and replaying design. Section 3 describes our implementation. We evaluate our system in Section 4. We describe related work in Section 5. We conclude in Section 6 and discuss future work.

2  Design

The main goal of Replayfs is to reproduce the original file system workload as accurately as possible. Memory-mapped operations can be most efficiently captured only in the kernel-they are part of the VFS API but not the system-call API. Therefore, it is logical for Replayfs to replay traces at the same level where the traces were captured. As shown in Figure 1, Tracefs [2] is a stackable file system [40]. Tracefs passes through all the Virtual File System (VFS) requests down to the lower file system (or a tree of several mounted file systems). Before invoking the lower operations and after returning from them, Tracefs logs the input and output values and the timing information associated with the requests. Replayfs is logically located at the same level as Tracefs-right above the lower file system as shown in Figure 2. However, Replayfs is not a stackable file system; it is not a file system either. It reproduces the behavior of the VFS during the trace capture time and appears like a VFS for the lower file system. Replayfs operates similarly to the part of the VFS which directly interacts with lower file systems.
Figure 1: Tracefs is a stackable file system located above the lower file system and below the VFS.
Figure 2: Replayfs is located directly above the lower file system. It is not a stackable file system. It is seen like the VFS for the lower file system.
File system related requests interact with each other and with the OS in intricate ways: concurrent threads use locks to synchronize access, they compete for shared resources such as disks, the OS may purge caches due to file system activity, etc. Therefore, to reproduce the original workload correctly it is necessary to reproduce the original timing of the requests and their side effects accurately. This is simple if the file system event rates are low. However, at high I/O rates, replayers' overheads make it more difficult to replay traces accurately. Specifically, every request-issuing process consists of three intervals: user mode activity (tuser), system time activity of the VFS (tVFS), and the lower file system event servicing time (tfs). Let us call treplayer the time necessary for a replayer to prepare for calling a replayed event. Clearly, if the treplayer > tuser then the timing and I/O rate could not be reproduced correctly if events are issued too close to each other as illustrated in Figure 3. This could happen, for example, if the trace is generated by a high performance application or there is a spike of I/O activity. Unfortunately, such situations are frequent and they are exacerbated because typical replayers have non-negligible overheads. Existing system-call replayers have overheads ranging from 10% [1] to 100% [7] and higher. Replayers' overheads come from the need to prefetch the data, manage threads, and invoke requests. Therefore, it is not surprising that no existing user-mode replayer can replay at the maximum possible application I/O rates and reproduce the peaks of I/O activity-the modes of file system activity that are most important for benchmarking and debugging.
Figure 3: Two consecutive file system events triggered by an original program, a system calls replayer, and Replayfs. In this example, Replayfs and the user-mode replayer have the same per-event overheads. Nevertheless, the lower file system receives events at the same time as they were captured if replayed by Replayfs because treplayer < tuser +tVFS, whereas the system-call replayer is unable to generate events on time because treplayer > tuser.
Increasing the CPU or I/O speeds solves the problem for network-file-system trace replayers because the replayer and the tested file system run on different hardware. However, non-network file system trace replayers run on the same hardware. Thus, hardware changes will affect the behavior of the lower file system together with the replayer: an increase in the CPU speed can decrease both the Replayfs overheads as well as the tVFS+tfs component. This may result in different file system request interaction, thus changing file system behavior.
Replayfs replays traces directly over the lower file system. Thus its per-operation overhead has to be smaller than tVFS+tuser, not smaller than just tuser as illustrated by the bottom timeline of Figure 3. Therefore, if the replaying overheads of Replayfs are the same as the overheads of some user-mode replayer, then Replayfs can replay at higher I/O rates than a user-mode replayer. Running in the kernel gives Replayfs several additional advantages described in this section, resulting in lower overheads. This allows Replayfs to replay high I/O-rate traces more accurately than any system-call replayer.

2.1  Replayfs Trace

There is a natural disparity between raw traces and replayable traces. A trace captured by a tracer is often portable, descriptive, and verbose-to offer as much information as possible for analysis. A replayable trace, however, needs to be specific to the system it is replayed on, and must be as terse as possible so as to minimize replaying overheads. Therefore, it is natural to preprocess raw traces before replaying them, as shown in Figure 4. Preprocessing traces allows us to perform many tasks at the user level instead of adding complexity to the in-kernel components. We call the user mode program for conversion and optimization of the Tracefs raw traces a trace compiler; we call the resulting trace a Replayfs trace. The trace compiler uses the existing Tracefs trace-parsing library. However, new trace parsers can be added to preprocess traces that were captured using different tools, at different levels, or on different OSs. The trace compiler splits the raw Tracefs trace into three components, to optimize the run-time Replayfs operation. Each component has a different typical access pattern, size, and purpose.

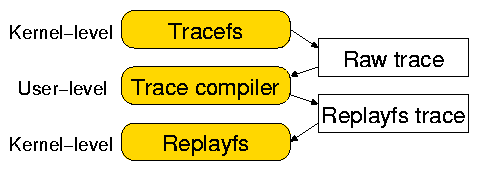

Figure 4: Captured raw traces are compiled into the Replayfs traces before replaying.
The first Replayfs trace component is called commands. It is a sequence of VFS operations with their associated timestamp, process ID, parameters, expected return value, and a return object pointer. At runtime, the commands are sequentially scanned and replayed one at a time. Therefore, the sequence of commands can be sequentially prefetched on demand at runtime. After the execution of every command, the actual return value is compared with the return value captured in the original trace. Replaying is terminated if the expected and actual return values do not match.
The second component is called the Resource Allocation Table (RAT). Because Tracefs and Replayfs operate on VFS objects whose locations in memory are not known in advance, and these objects are shared between the commands, we added a level of indirection to refer to the commands' parameters and return values. Commands contain offsets into the RAT for associated VFS objects and memory buffers. Thus, Replayfs populates RAT entries at run-time whereas the trace compiler creates commands referencing the RAT entries at trace compile time. Tracefs captures memory addresses of VFS objects related to the captured operations. All VFS objects that had the same memory address during the trace capture share the same RAT entry. The RAT is accessed randomly for reading and writing using offsets in the program elements and therefore the RAT is kept in memory during the entire replaying process. We store integer parameters together with the command stream. This allows us to decrease the size of the RAT and avoid unnecessary pointer dereferencing. Another purpose of the RAT is reference counting. In particular, the reference count of a regular VFS object may be different from the Replayfs reference count for the same object. For example, this happens if the object was already in use and had non-zero reference count at the time a replaying process was started. We use reference counts to release VFS objects properly upon the completion of replaying.
The third Replayfs trace component is the memory buffers necessary to replay the trace. They include file names and buffers to be written at some point in time. These buffers are usually accessed sequentially but some of them may be accessed several times during the replaying process. This is usually the largest component of the Replayfs trace. For replaying, memory buffers are accessed for reading only because the information read from the disk is discarded. We outline properties of Replayfs trace components in Table 1.
Component Access In Memory Read/Write
Commands Sequent. On demand Read only
RAT Random Always Read+Write
Buffers Random On demand Read only
Table 1: Replayfs trace components' properties.
Figure 5 shows an example Replayfs trace fragment. In this example, the dentry (Linux VFS directory entry object) RAT entry is referenced as the output object of the LOOKUP operation and as the input parameter of the CREATE operation. The "" file name is such an example buffer.

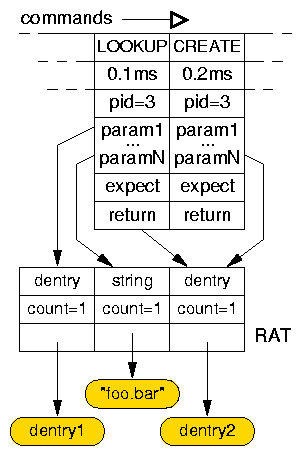

Figure 5: Example Replayfs trace. Commands reference the Resource Allocation Table (RAT) by the index values. The RAT points directly to the shared objects in memory.
During the Replayfs trace generation, the trace compiler performs several optimizations. We keep the RAT in memory during the entire replaying process. Therefore, the trace compiler reuses RAT entries whenever possible. For example, the trace compiler reuses a memory buffer entry that is not used after some point in time and stores a file pointer entry that is required only after that point. To minimize the amount of prefetching of memory buffers, the trace compiler scans and compares them. Because all the memory buffers are read-only, all except one of the buffers with exactly the same contents may be removed from the trace.

2.2  Data Prefetching

The commands and buffers components of the Replayfs trace are loaded into memory on demand. Because future data read patterns are known, we can apply one of several standard prefetching algorithms. We have chosen the fixed horizon algorithm [23] because it works best when the Replayfs trace is fetched from a dedicated disk. Therefore, we can optimize the prefetching for low CPU usage. It was theoretically shown that the fixed horizon and similar algorithms are almost optimal if the prefetching process is not I/O-bound [5]. We assume that a dedicated disk is always used for prefetching the Replayfs trace and therefore the prefetching process is not I/O bound. The commands and buffers Replayfs trace components can be located on separate disks to further decrease the I/O contention. The RAT component is always present in memory and does not interfere with the prefetching of the other two components. An additional advantage of the fixed horizon algorithm is small memory consumption. Note that the information about buffers that require prefetching is extracted from the future commands. Therefore, we prefetch the commands stream earlier than it is necessary, to keep up with the replaying of these commands.

2.3  Threads and Their Scheduling

Replayfs issues requests to the lower file system on behalf of different threads, if different threads generated these requests in the original trace. This is necessary to accurately reproduce and properly exercise the lower file system in case of resource contention (e.g., disk head repositioning, locks, semaphores, etc.) and to replay the timing properly if lower operations block. However, because using an excessive number of threads may hurt performance [21], Replayfs reuses threads if possible. In particular, the trace compiler optimizes the commands stream: file system traces do not contain information about thread creation and termination times. Similar to the RAT entries reuse, the trace compiler reuses processes. Thus, if some program spawns a thread and after its termination it spawns another one, Replayfs will automatically use one thread to replay operations invoked by both of them. To minimize the scheduling-related overheads, Replayfs does not create a master thread to manage threads. For example, there is only one thread running if the traced data was generated by a single process. It is important to note that the scheduling overheads during replaying are approximately the same as during the trace capture time. This is one of the conditions that is necessary to replay traces efficiently on the same hardware as was used during the trace capture.
Standard event timers have a precision of about 1ms. To increase the event replaying precision, a pre-spin technique is commonly used [9,1]: event timers are set to about 1ms before the actual event time. The awoken thread then spins in a loop, constantly checking the current time until the desired event time is reached. A natural way to lower the CPU load is to use the pre-spinning time for some other productive activity. We call this technique a productive pre-spin. Replayfs uses it to move another thread into the run-queue if there is enough time before the actual event time and the next operation has to be replayed by a different thread. The next thread is not woken up immediately; it is just put on the run-queue. This way CPU cycles are more effectively spent on moving the process into a run-queue instead of spinning.

2.4  Zero Copying of Data

One of the main advantages of kernel replayers over user mode replayers is the ability to avoid copying of unnecessary data across the kernel-user boundary. Thus, data from pages just read does not need to be copied to a separate user mode buffer. The data read during the trace replaying is of no interest to the replaying tools. If desired, checksums are sufficient for data verification purposes. Instead of copying we read one byte of data from a data page to set the page's accessed bit. However, there is no easy way a user-mode program can read data but avoid copying it to user space. Direct I/O allows programs to avoid extra data copying but is usually processed differently at the file system level and therefore the replaying would be inaccurate if normal read or write requests are replayed as direct I/O requests.
Avoiding the data copying is more difficult for write operations. However, kernel-mode replayers have access to low-level file system primitives. For example, a data page that belongs to the trace file can be simply moved to the target file by just changing several pointers. Therefore, even for writing, most data copying can be eliminated. Elimination of unnecessary data copying reduces the CPU and memory usage in Replayfs. Note that user-mode replayers that do not use direct I/O for fetching the data from the disk, have to copy the data twice: first, they copy it from the kernel to the user space buffers when they load the trace data; then they copy the data to the kernel when they issue a write request.

2.5  File System Caches

File system page caches may be in a different state when replaying the traces than when capturing them. Some times it is desirable to replay a trace without reproducing the original cache state precisely; this is useful, for example, when replaying a trace under different hardware conditions (e.g., for benchmarking). However, sometimes (e.g., for debugging or forensics) it is desirable to reproduce the lower file system behavior as close to the original as possible. Therefore, Replayfs supports three replaying modes for dealing with read operations. First, reads are performed according to the current cache state. In particular, Replayfs calls all the captured buffer read operations. In this case, only non-cached data pages result in calls to page-based read operations. Second, reads are performed according to the original cache state. Here, reads are invoked on the page level only for the pages that were not found in the cache during tracing. Third, reads are not replayed at all. This is useful for recreation of the resulting disk state as fast as possible.
Directory entries may be released from the dentry cache during the replaying process but stay in during the trace capture. This can result in an inconsistency between the RAT entries and the actual dentries. To avoid this situation we force the dentries that stayed in the cache during the capture to stay in the cache during the replaying process: we increase a dentry's reference counter every time it is looked up and decrease it when dentries were released according to the original trace.

2.6  Asynchronous File System Activity

Some of the file system activity is performed asynchronously by a background thread. Replaying asynchronous activity is complicated because it is intertwined with file system internals. For example, access-time updates may be supported on the file system used for replaying but not be supported on the original one. Therefore, Replayfs replays such activity indirectly: the meta-data information is updated on time according to the trace data but it is up to the lower file system how and when to write the corresponding changes to stable storage. This way the replaying process exercises the lower file system without enforcing restrictions that are related only to the originally traced file system.

2.7  Initial File System State

In the simplest case, a trace can be captured starting with an empty file system and then replayed over an empty file system. However, traces usually contain operations on files and other file system objects which existed before the tracing process was started. Therefore, a file system must be prepared before the replaying may begin. It is convenient to prepare the file system using the information contained in the trace. However, the best way to prepare the lower file system is snapshotting [26,13,39]. Full restoration of the initial file system state makes trace replaying more precise because many file system algorithms have different performance with different file system states. For example, directory sizes may influence the performance of LOOKUP and READDIR operations even if most of the files in the directory never show up in a trace. Existing snapshotting systems can capture and restore snapshots for Replayfs.

3  Implementation

Before a file system trace can be precisely replayed, it has to be captured without perturbing the behavior of the lower file system. Therefore, we performed several optimizations in Tracefs. Traditionally, stackable file systems buffer data twice. This allows them to keep both modified (e.g., encrypted or compressed) and unmodified data in memory at the same time and thus save considerable amounts of CPU time and I/O. However, Tracefs does not modify the data pages. Therefore, double caching does not provide any benefits but makes the page cache size effectively half its original size. The data is copied from one layer to the other, unnecessarily consuming CPU resources. Unfortunately, the Linux VFS architecture imposes constraints that make sharing data pages between lower and upper layers complicated. In particular, a data page is a VFS object that belongs to a single inode and uses the information of that inode at the same time [12].
We applied a solution used in RAIF [15]. Specifically, data pages that belong to the upper inode are assigned to lower-level inodes for the short duration of the lower-level page-based operations. We tested the resulting Tracefs stackable file system on a single-CPU and on multi-CPU machines under compile and I/O-intensive workloads. In addition to the CPU time and memory savings, this optimization allowed us to reduce the Tracefs source size by about 250 lines.
In most cases, Replayfs does not need the original data buffers for replaying READ operations. Even for data verification purposes, an MD5 checksum is sufficient. Therefore, we added a new Tracefs option that instructs it to capture the data buffers for writing operations but not for reads. This allowed us to reduce both the Tracefs trace sizes and the Tracefs system time overheads.
Trace compiler   The trace compiler is optimized for performance. Its intermediate data sets are commonly larger than the amount of the available memory. Therefore, we added several hash data structures to avoid repeatedly scanning the data and thus reduce I/O usage. We compare the buffers by comparing their MD5 checksums. This allows us to save the CPU time because MD5 checksums are calculated only once for every buffer. The trace compiler consists of 4,867 lines of C code.
Replayfs kernel module   Because the trace compiler prepares the data for replaying, Replayfs itself is relatively small and simple. It consists of thread management, timing control, trace prefetching and eviction, operation invocation, and VFS resource-management components. Replayfs's C source is 3,321 lines long. Replayfs supports accelerated or decelerated playback by a fixed factor, as well as replaying as fast as possible.
Both Replayfs and Tracefs are implemented as loadable kernel modules. We have ported Tracefs to the 2.6 Linux kernel and now both Tracefs and Replayfs can be used on either 2.4 or 2.6 Linux kernels.

4  Evaluation

We conducted our benchmarks on a 1.7GHz Pentium 4 machine with 1GB of RAM. Its system disk was a 30GB 7200 RPM Western Digital Caviar IDE formatted with Ext3. In addition, the machine had two Maxtor Atlas 15,000 RPM 18.4GB Ultra320 SCSI disks formatted with Ext2. We used one of the SCSI disks for storing the traces and the Replayfs traces; we used the other disk for running the test workloads and replaying them. We remounted the lower file systems before every benchmark run to purge file system caches. We ran each test at least ten times and used the Student-t distribution to compute the 95% confidence intervals for the mean elapsed, system, user, and wait times. Wait time is the elapsed time less CPU time used and consists mostly of I/O, but process scheduling can also affect it. In each case, the half-widths of the confidence intervals were less than 5% of the mean. The test machine was running a Fedora Core 3 Linux distribution with a vanilla 2.6.11 kernel.

4.1  Evaluation Tools and Workloads

We created one additional statistics module, for evaluation purposes only: this module records the timeline statistics from Ext2 and the timing-deviation figures from Replayfs. This module uses the /proc interface to export the data to the user-level for analysis and plotting. The statistics module stores the resulting information in a static array and the only effects to a file-system operation are querying the time and incrementing a value in the output array. Therefore, the corresponding overheads were negligible: we measured them to be below 1% of the CPU time for all the experiments we ran.
Am-utils build   Building Am-utils is a CPU-intensive benchmark. We used Am-utils 6.1 [25]: it contains over 60,000 lines of C code in 430 files. The build process begins by running several hundred small configuration tests to detect system features. It then builds a shared library, ten binaries, four scripts, and documentation: a total of 152 new files and 19 new directories. Though the Am-utils compile is CPU intensive, it contains a fair mix of file system operations. According to the instrumented Ext2 file system, it uses 25% writes, 22% lseek operations, 20.5% reads, 10% open operations, 10% close operations, and the remaining operations are a mix of READDIR, LOOKUP, etc. We used Am-utils because its activity is not uniform: bursts of I/O activity are separated by intervals of high CPU activity related to the user mode computations. This allows us to analyze the replaying precision visually. Also, the compilation process heavily uses the memory-mapped operations.
Postmark   Postmark v1.5 [16] simulates the operation of electronic mail servers. It performs a series of file system operations such as appends, file reads, creations, and deletions. This benchmark uses little CPU but is I/O intensive. We configured Postmark to create 20,000 files, between 512-10K bytes in size, and perform 200,000 transactions. We selected the create, delete, read, and write operations with equal probability. We used Postmark with this particular configuration because it stresses Replayfs under a heavy load of I/O-intensive operations.
Pread   Pread is a small micro-benchmark we use to evaluate Replayfs's CPU time consumption. It spawns two threads that concurrently read 1KB buffers of cached data using the pread system call. In every experiment, Pread performed 100 million read operations. We use Pread to compare our results with Buttress [1], a state-of-the-art system call replayer that also used pread. This micro-benchmark also allowed us to demonstrate the benefits of our zero-copying replaying.

4.2  Memory Overheads

The memory consumed by replayers effectively reduces the file system cache sizes and therefore can affect the behavior of the lower file system. The compiled binary module sizes are negligible. They are 29KB for the Replayfs module and 3KB for the statistics module. Our user mode trace compiler reduces the trace size by generating the variable length program elements and by eliminating duplicate data buffers. Table 2 shows some characteristics of the raw and compiled traces as well as their compilation times. We can see that the original Am-utils trace size was reduced by 56%, by 70% for Postmark, and by 45% for Pread. Recall that only the RAT is entirely kept in memory and its size was small for all the traces we used. The program and the buffers trace components are prefetched on demand. We used a separate disk for storing the traces. This reduced I/O contention and allowed us to prefetch the minimal amount of data that is necessary to replay the trace on time. In addition, direct access to the page cache allowed us to promptly evict pages that will not be accessed in the near future. As a result, the memory used for prefetching and storing the traces never exceeded 16MB for all of our experiments. This means that all the Replayfs memory overheads together were less than 2% of the available memory on our test machine during any time of our benchmark runs.
Am-utils Postmark Pread
Raw trace 334 MB 3,514 MB 7,248 MB
Commands 25 MB 224 MB 4,000 MB
RAT 0.4 MB 3.3 MB 60 bytes
Buffers 122 MB 832 MB 3 bytes
Compilation < 1 15 31
time (minutes)
Table 2: Size and compilation time of the traces.

4.3  Timing Precision of Replaying

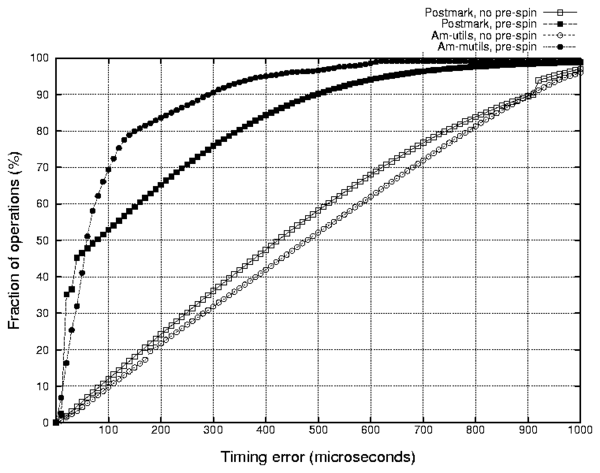

Figure 6: Cumulative distribution functions of the event invocation error rates during several replaying experiments. The closer the curve is to the upper-left corner, the better the average accuracy is.
Standard OS timers usually have low resolution. For example, standard Linux timers have a resolution of one millisecond which is much larger than a microsecond, the typical duration of a file system operation that does not result in I/O. We have applied the pre-spin technique [9] described in Section 2 to bring the timing accuracy to the microsecond scale. Figure 6 shows the cumulative distribution function (CDF) of the operation invocation timing errors. Naturally, the timing errors of a Postmark run with no pre-spin are distributed almost equally between 0 and 1 millisecond because events are triggered with the poor millisecond resolution. We can see that pre-spinning dramatically decreases the error values. However, the error distributions differ for different workloads.
Two figures clarify this behavior. Figure 7 shows the average timing error during every second of the Am-utils trace replaying. Figure 8 shows the corresponding file system operation counts recorded by the instrumented Ext2. We can see a clear correlation between the replaying event rates and the related average error. The reason behind this correlation is that events well spaced apart are replayed with high accuracy, whereas events that should be invoked close to each other cannot be invoked as accurately because of the I/O and CPU time overheads. Therefore, we can make two conclusions.
Figure 7: Dependence of the average invocation time error on elapsed time during the Am-utils trace replaying.
First, the CDF of invocation errors can easily hide real replaying problems. For example, a CDF captured with a slow operation rate workload may indicate that almost all of the operations were replayed with high precision. However, Figure 6 shows that no information can be inferred about how the same tool would behave at medium or high I/O rates.
Second, the timers' accuracy is not as important for file system activity replayers as it was believed before [9,1]. The timer's resolution contributes to the event invocation errors only at the low event rates where timing precision is not even necessary. On one hand, it is unlikely that events separated by long intervals of no file system activity (as long as several durations of an average event) will influence each other too much. On the other hand, file system operations invoked close to each other, and especially if they are invoked by different processes and they overlap, are more likely to interfere with each other. Therefore, it is desirable to replay them as precisely as possible. However, in that case the timer's resolution has small overall impact on the resulting timing quality. Instead, the overheads that replayers add between operations define the timing precision as we discussed in Section 2. We can see that in Figure 8 by comparing the traces of an Am-utils replayed with different timer resolutions. We cannot easily see the pre-spinning improvement effects in Figure 8, because they are only visible at the micro-second resolution; Figure 6 shows our pre-spinning improvements more prominently. However, we can see from Figure 8 that in both timer resolution cases there are small discrepancies at the peaks of activity between the replayed and captured traces.
One may assume that an increase in the CPU speed can solve the timing precision problem. This is indeed the case for network packet and network file system replayers because the replayer and the target system run on different machines. However, this is not the case for non-network file system replayers because they execute on the same machine as the tested file system. Therefore, with a faster CPU, the replayed operations will also execute faster and their corresponding interactions will change disproportionally; that is the portion of the CPU time spent servicing file system requests will decrease and requests from different processes will overlap less, thus processes will compete less for locks or disk heads.

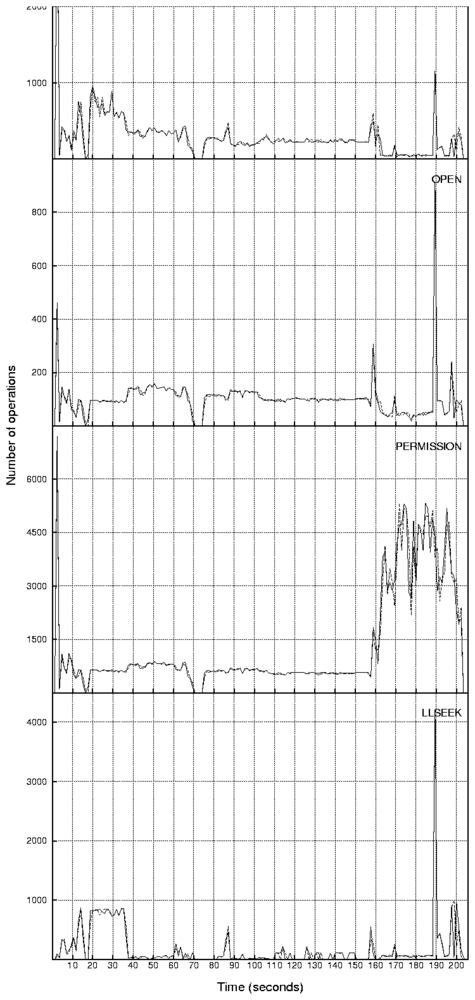

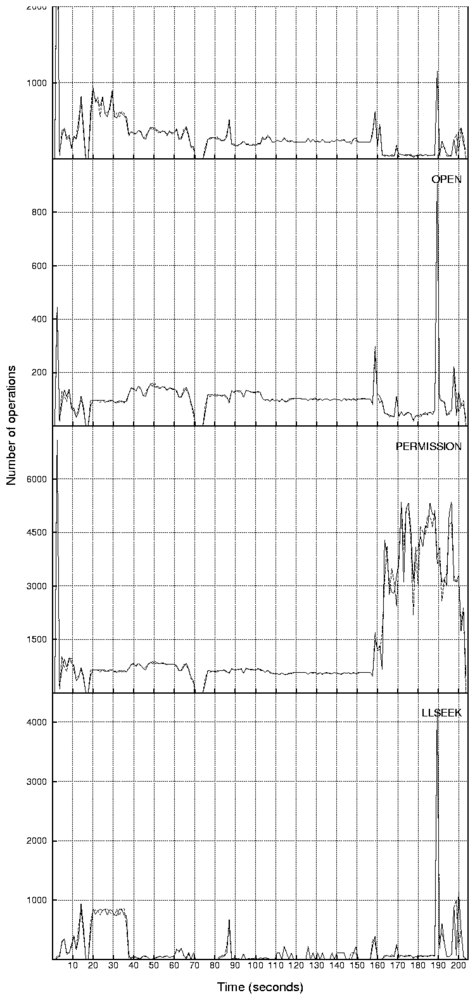

Figure 8: Counts of the file system operations as seen by the lower Ext2 file system while replaying the Am-utils traces without the pre-spin timer enhancement (top) and with the pre-spin enhancement (bottom). As we can see, there is no clear difference between the two on the seconds scale in spite of the fact that timing on the micro-second scale is better with the pre-spin configuration. In most cases the Replayfs and Tracefs curves overlap and are indistinguishable. Small timing discrepancies are correlated with peaks of I/O activity. We show four operations with the highest peaks of activity ( 800 operations) because they have the highest timing errors observed. Also, we do not show the RELEASE and COMMIT_WRITE operations because their graphs closely resemble the shapes of the OPEN and PRPARE_WRITE operations, respectively.

4.4  CPU Time Consumption

System-call replaying tools run in user mode and invoke the same system calls that were invoked by the original user programs. Usually user-level replayers have CPU time overheads that are higher than the user activity intervals in the original trace. Replayfs runs in the kernel and therefore avoids wasting time on some of the operations required to cross the user-kernel boundary.
Let us consider the pread system call. After it is invoked, the VFS converts the file descriptor number to an in-kernel file structure, checks parameters for validity and correspondence with the file type, and verifies that the buffer can be used for writing. Replayfs benefits from the following four optimizations: (1) kernel mode VFS objects are readily available to Replayfs and need not be looked up; (2) Replayfs operates on VFS objects directly and the file structure argument is taken directly by looking up the RAT; (3) parameters and file access modes were checked during the trace capture and can be skipped; and (4) memory buffers are not passed from the user space, so Replayfs can allocate them directly without having to verify them. Figure 9 shows the times related to the execution of the original Pread program and replaying its trace by Replayfs at full speed. The Replayfs bar in Figure 9 shows that skipping the VFS operations described above allows Replayfs to replay the Pread trace 32% faster than the original program generated it on the same hardware.

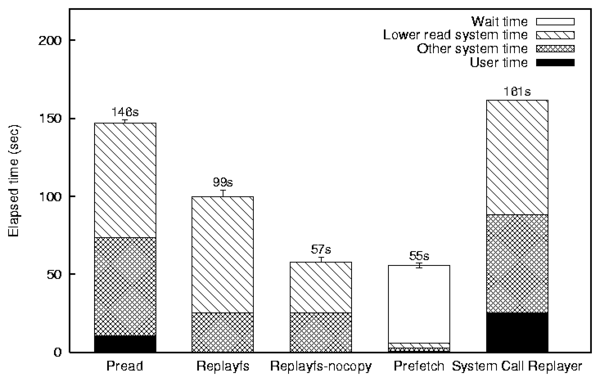

Figure 9: Elapsed times of our Pread program (Pread), the Pread trace replayed by Replayfs while copying the data just read (Replayfs), elapsed time of the Pread trace replayed by a Replayfs that skips the data copying (Replayfs-nocopy), the time necessary to read the trace data as fast as possible (Prefetch), and estimated elapsed time of the system call replayer with a 10% user time overhead (System Call Replayer)
Replayfs can also avoid copying data between user-mode buffers and the kernel pages. The Replayfs-nocopy bar in Figure 9 demonstrates that Replayfs can replay the original Pread trace 61% (2.5 times) faster than the original program generated it on the same hardware. We can see that the data copying alone can reduce the execution of the file system read operation by 55% (685 out of 1,240 CPU cycles on average).
In the case of the Pread trace, no prefetching of data was necessary (except for 3 bytes of null-terminated file name). We created a modified version of the Pread program we call Prefetch that sequentially reads data from a file as fast as possible. It took Prefetch 55 seconds on average to read the Pread program trace component. The Prefetch bar in Figure 9 shows that out of these 55 seconds, 49 were spent waiting for I/O completion. This means that the replaying process was not I/O-bound because Replayfs prefetches traces asynchronously. However, a further decrease of the Replayfs CPU overheads may make Replayfs I/O-bound while replaying the Pread trace: Replayfs would reach the physical limitations of the I/O hardware and the disks, at which point replaying could not be sped up further. In that case, this problem can be resolved by replacing the disk drive or its controller because the tested file system and the Replayfs traces are located on different physical drives.
We compared Replayfs with the state-of-the-art Buttress system call replayer. Unfortunately, Buttress availability for public, especially for comparison purposes, is limited and we could not evaluate it. Its overheads under the Pread workload are reported to be 10% [1]. The rightmost bar in Figure 9 represents an extrapolated timing result for Buttress; for visual comparison purposes, we created that bar by adding 10% overhead of the elapsed time to the user time of the original Pread program time. Note that the actual overhead value is not as important as the fact that the overhead is positive. Because the overhead is positive, user-level replayers cannot replay traces like Pread at the same rate as the original Pread program can issue I/O requests. Having low or even negative overheads in Replayfs results in good reproduction of the original timing conditions. Despite some existing discrepancies between the original traces and the replayed ones (seen in Figure 8), the replayed and the original figures overlap for most of the operations even during peaks of activity. Existing system call replaying tools such as Buttress cannot match the trace as closely because of their inherent overheads. Buttress is a well designed system; its overheads are lower than the overheads of other published systems that replay traces via system calls. However, it is precisely because Buttress and similar systems run in the user level that they have higher overheads, which in turn imposes greater limitations on their ability to replay traces accurately.
Another benefit of Replayfs's low overheads is the ability to replay the original traces at faster speeds even on the same hardware. As we described above, we can replay read-intensive traces 2.5 times faster than their original time. In addition, we replayed the Am-utils trace in the accelerated mode. We were able to replay the 210-second long Am-utils trace in under 6 seconds, reproducing all the memory-mapped and other disk state changing operations. This represents a speedup of more than two orders of magnitude.

5  Related Work

Trace capture and replaying have been used for decades and we describe only a representative set of papers related to file system activity tracing and replaying.
Capturing traces   We describe tracers according to the level of abstraction where they capture the file system activity: system-call-level tracers, virtual file system level tracers, network tracers, and finally driver-level tracers. We discuss them in this order because network-level tracers capture file system information at a level of abstraction that is higher than the driver-level, but is lower than the VFS-level.
Trace replaying   Similar to capturing traces, replaying traces is performed at several logical levels. Usually, the traces are replayed at the same level that they were captured from. This way changes to the timing and operations mix are minimized. However, for simplicity, some authors replay kernel-level traces at the user level.
File system state versioning   File system trace replaying can be considered a form of fine-grained versioning [32,20]. Replaying can reproduce the version of the file system state including possible state abnormalities caused by timing conditions. This property is useful for forensics (post-attack investigation) and debugging purposes. Also, it can be used to emulate the aging of a file system before running actual benchmarks [31].
Before replaying file system activity, replayers may have to recreate the pre-tracing file system image. This is important for accuracy: file layouts and the age of the file system can affect its behavior significantly. Some authors have opted to extrapolate the original file system state based on information gleaned from the trace alone [19,42]. This technique has three disadvantages. First, full path name information is required in the trace data to identify the exact directories in which files were accessed [22]. Second, files that were not accessed during the trace are not known to the system, and those files could have affected the file system's layout and age. Third, several trace-capture techniques omit information that is vital to replaying accurately. For example, an NFS (v2 and v3) trace replayer that sees an NFS_WRITE protocol message cannot tell if the file being written to existed before or not. It is therefore our belief that the best method to restore the pre-tracing file system state is to use snapshotting [26,13,39].
Data prefetching   Data prefetching is a common technique to decrease application latency and increase performance [3]. Future access patterns are normally inferred from a history of past accesses or from hints provided by applications [34]. If access patterns are known in advance, two simple approaches are possible. First, data can be aggressively read in advance without overwriting the already prefetched data. Second, data can be read just in time to avoid stalls. Cao et al. showed that both approaches are at most two times worse than the optimal solution [5]. Both algorithms have simple implementations. The TIP2 system [23] uses a version of the second algorithm called fixed horizon. A more sophisticated reverse aggressive [17] algorithm has near-optimal performance but is difficult to implement. The forestall [18] algorithm is an attempt to combine the best of these algorithms: simplicity and prefetching performance.
Timing inaccuracy   Existing system-call replayers suffer from timing precision problems and peak-load reproduction problems to some degree, for several reasons:
The metric used to evaluate the replaying precision in several papers is the average difference between the actual event time and the traced event time [9,1]. For example, using better kernel timers and the madvise interface resulted in a typical 100-microsecond of difference [9]-almost a 100 times improvement compared with a replayer without these measures [33].

6  Conclusions

Trace replaying offers a number of advantages for file system benchmarking, debugging, and forensics. To be effective and accurate, file system traces should be captured and replayed as close as possible to the file system code. Existing systems that capture file system traces at the network file system level often miss on client-side cached or aggregated events that do not translate into protocol messages; system-call traces miss the ever more popular memory-mapped reads and writes; and device-driver level traces omit important meta-data file system events such as those that involve file names. These problems are exacerbated when traces that were captured at one level are replayed at another: even more information loss results.
We demonstrated that unlike previously believed, the accuracy of replaying high I/O-rate traces is limited by the overheads of the replayers-not the precision of the timers. Since most file systems run in the kernel, user-level file system replayers suffer from overheads that affect their accuracy significantly. User-mode replayers produce an excessive number of context switches and data copies across the user-kernel boundary. Therefore, existing replayers are inaccurate and unable to replay file system traces at high event rates.
We have designed, developed, and evaluated a new replaying system called Replayfs, which replays file system traces immediately above file systems, inside the kernel. We carefully chose which actions are best done offline by our user-level trace compiler, or online by our runtime kernel Replayfs module. Replaying so close to the actual file system has three distinct benefits:
Our kernel-mode replayer is assisted by a user-mode trace compiler, which takes portable traces generated by Tracefs, and produces a binary replayable trace suitable for executing in the kernel. Our trace compiler carefully partitions the data into three distinct groups with different access patterns, which allowed us to apply several optimizations aimed at improving performance:
which are read sequentially;
Resource Allocation Table (RAT)
which determines how in-memory resources are used throughout the replaying phase. In particular, the RAT allows us to reuse resources at replay time once they are no longer needed, rather than discarding them;
which are bulk I/O data pages and file names that are often accessed randomly on a need basis.
This partitioning and the possibility to evict cached data pages directly allowed us to reduce memory usage considerably: in all of our experiments, Replayfs consumed no more than 16MB of kernel memory, which is less than 2% on most modern systems. Overall, Replayfs can replay traces faster than any known user-level system, and can handle replaying of traces with spikes of I/O activity or high rates of events. In fact, thanks to our optimizations, Replayfs can replay traces captured on the same hardware-faster than the original program that produced the trace.

6.1  Future Work

Commands executed by different threads may be issued out of their original order. For example, if one thread is waiting for a long I/O request, other threads may continue their execution unless there is a dependency between requests. This is useful for stress-testing and certain benchmarking modes. However, commands have to be synchronized at points where threads depend on each other. For example, if an original trace shows that one thread read a file after a second thread wrote the same file, then this ordering should be preserved during trace replaying. We are modifying our existing trace compiler to add thread synchronization commands to the commands Replayfs trace component.
Some workloads may result in different behavior of the file system even if the operations' order is preserved. For example, two threads concurrently writing to the same file may create a different output file due to in-kernel preemption. Future policies will allow Replayfs to differentiate between real replaying errors and tolerable mismatches between return values due to race conditions.
There is a large body of existing traces which were captured over the past decades on different systems or at different levels. Unfortunately, many of these traces cannot be replayed for lack of tools. We are currently developing user-mode translators which can convert such traces from other formats into our own portable format.
We have carefully analyzed the VFS interfaces of Linux, FreeBSD, Solaris, and Windows XP. Despite their significant internal implementation differences, we found them to be remarkably similar in functionality. This is primarily because file system interfaces have evolved over time to cooperate best with APIs such as the POSIX system-call standard. Therefore, we also plan to port Replayfs to other operating systems.
