3. Evaluation

We evaluate the effectiveness of FiST using three criteria: code size, development time, and performance. We show how code size is reduced dramatically when using FiST, and the corresponding improvements in development and porting times. We also show that performance overhead is small and comparable to other stacking work. We report results based on the four example file systems described in this paper: Snoopfs, Cryptfs, Aclfs, and Unionfs. These were tested on three different platforms: Linux 2.3, Solaris 2.6, and FreeBSD 3.3.


3.1 Code Size

Code size is one measure of the development effort necessary for a file system. To demonstrate the savings in code size achieved using FiST, we compare the number of lines of code that need to be written to implement the four example file systems in FiST versus three other implementation approaches: writing C code using a stand-alone version of Basefs, writing C code using Wrapfs, and writing the file systems from scratch as kernel modules using C. In particular, we first wrote all four of the example file systems from scratch before writing them using FiST. For these example file systems, the C code generated from FiST was identical in size (modulo white-spaces and comments) to the hand-written code. We chose to include results for both Basefs and Wrapfs because the latter was released last year, and includes code that makes writing some file systems easier with Wrapfs than Basefs directly.

When counting lines of code, we excluded comments, empty lines, and %% separators. For Cryptfs we excluded 627 lines of C code of the Blowfish encryption algorithm, since we did not write it. When counting lines of code for implementing the example file systems using the Basefs and Wrapfs stackable templates, we exclude code that is part of the templates and only count code that is specific to the given example file system. We then averaged the code sizes for the three platforms we implemented the file systems on: Linux 2.3, Solaris 2.6, and FreeBSD 3.3. These results are shown in Figure 8. For reference, we include the code sizes of Basefs and Wrapfs and also show the number of lines of code required to implement Wrapfs in FiST and Basefs.

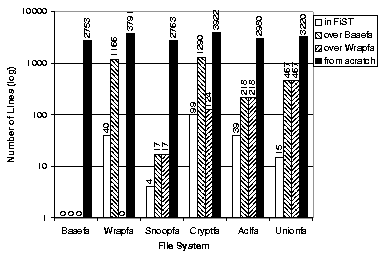

Figure: Average code size for various file systems when written in FiST, written given the Basefs or Wrapfs templates, and written from scratch in C.
\begin{figure}
\begin{centering}
\epsfig{file=figures/size-chart.eps, width=3.25in}\vspace{-0.5em}
\end{centering}\end{figure}

Figure 8 shows large reductions in code size when comparing FiST versus code hand-written from scratch--generally writing tens of lines instead of thousands. We also include results for the two templates. Size reductions for the four example file systems range from a factor of 40 to 691, with an average of 255. We focus though on the comparison of FiST versus stackable template systems. As Wrapfs represents the most conservative comparison, the figure shows for each file system the additional number of lines of code written using Wrapfs. The smallest average code size reduction in using FiST versus Wrapfs or Basefs across all four file systems ranges from a factor of 1.3 to 31.1; the average reduction rate is 10.5.

Figure 8 suggests two size reduction classes. First, moderate (5-6 times) savings are achieved for Snoopfs, Cryptfs, and Aclfs. The reason for this is that some lines of FiST code for these file systems produce ten or more lines of C code, while others result in almost a one-to-one translation in terms of number of lines.

Second, the largest savings appeared for Unionfs, a factor of 28-33 times. The reason for this is that fan-out file systems produce C code that affects all vnode operations; each vnode operation must handle more than one lower vnode. This additional code was not part of the original Wrapfs implementation, and it is not used unless fan-outs of two or more are defined (to save memory and improve performance). If we exclude the code to handle fan-outs, Unionfs's added C code is still over 100 lines producing savings of a factor of 7-10. FreeBSD's Unionfs is 4863 lines long, which is 50% larger than our Unionfs (3232 lines). FreeBSD's Unionfs is 2221 lines longer than their Nullfs, while ours is only 481 lines longer than our Basefs.2

Figure 8 shows the code sizes for each platform. The savings gained by FiST are multiplied with each port. If we sum up the savings for the above three platforms, we reach reduction factors ranging from 4 to over 100 times when comparing FiST to code written using the templates. This aggregated reduction factor exceeds 750 times when comparing FiST to C code written from scratch. The more ports of Basefs exist, the better these cumulative savings would be.


3.2 Development Time

Estimating the time to develop kernel software is very difficult. Developers' experience can affect this time significantly, and this time is generally reduced with each port. In this section we report our own personal experiences given these file system examples and the three platforms we worked with; these figures do not represent a controlled study. Figure 9 shows the number of days we spent developing various file systems and porting them to three different platforms.

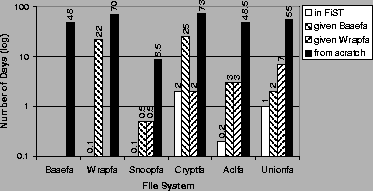

Figure: Average estimated reduction in development time
\begin{figure}
\begin{centering}
\epsfig{file=figures/time-chart.eps, width=3.25in}\vspace{-0.5em}
\end{centering}\end{figure}

We estimated the incremental time spent designing, developing, and debugging each file system, assuming 8 hour work days, and using our source commit logs and change logs. We estimated the time it took us to develop Wrapfs, Basefs, and the example file systems. Then we measured the time it took us to develop each of these file systems using the FiST language.

For most file systems, incremental time savings are a factor of 5-15 because hand writing C code for each platform can be time consuming, while FiST provides this as part of the base templates and the additional library code that comes with Basefs. For Cryptfs, however, there are no time savings per platform, because the vast majority of the code for Cryptfs is in implementing the four encoding and decoding functions, which are implemented in C code in the Additional C Code section of the FiST file; the rest of the support for Cryptfs is already in Wrapfs.

The average per platform reduction in development time across the four file systems is a factor of seven in using FiST versus the Wrapfs templates. If we assume that development time correlates directly to productivity, we can corroborate our results with Brooks's report that high-level languages are responsible for at least a factor of five in improved productivity[3].

An additional metric of productivity is comparing the number of lines of C code developed for each man-day, given the templates. The average number of lines of code we wrote per man-day was 80. One user of our Wrapfs templates had used them to create a new migration file system called mfs3. The average number of lines of code he wrote per man-day was 68. The difference between his rate of productivity and ours is only 20%, which can be explained because we are more experienced in writing file systems than he is.

The most obvious savings in development time come when taking into account multiple platforms. Then it is clearer that each additional platform increases the savings factor of FiST versus other methods by one more.


3.3 Performance

To evaluate the performance of file systems written using FiST, we tested each of the example file systems by mounting it on top of a disk based native file system and running benchmarks in the mounted file system. We conducted measurements for Linux 2.3, Solaris 2.6, and FreeBSD 3.3. The native file systems used were EXT2, UFS, and FFS, respectively. We measured the performance of our file systems by building a large package: am-utils-6.0, which contains about 50,000 lines of C code in several dozen small files and builds eight binaries; the build process contains a large number of reads, writes, and file lookups, as well as a fair mix of most other file system operations. Each benchmark was run once to warm up the cache for executables, libraries, and header files which are outside the tested file system; this result was discarded. Afterwards, we took 10 new measurements and averaged them. In between each test, we unmounted the tested file system and the one below it, and then remounted them; this ensured that we started each test on a cold cache for that file system. The standard deviations for our measurements were less than 2% of the mean. We ran all tests on the same machine: a P5/90, 64MB RAM, and a Quantum Fireball 4.35GB IDE hard disk.

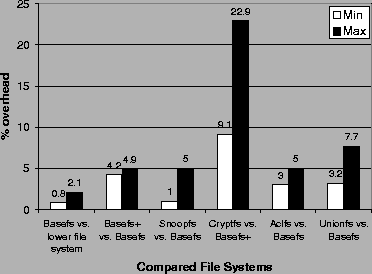

Figure: Performance overhead of various file systems for the large compile benchmark, across three operating systems
\begin{figure}
\begin{centering}
\epsfig{file=figures/perf-chart.eps, width=3.25in}\vspace{-0.5em}
\end{centering}\end{figure}

Figure 10 shows the performance overhead of each file system compared to the one it was based on. The intent of these figures is two-fold: (1) to show that the basic stacking overhead is small, and (2) to show the performance benefits of conditionally including code for manipulating file names and file data in Basefs. Basefs+ refers to Basefs with code for manipulating file names and file data.

The most important performance metric is the basic overhead imposed by our templates. The overhead of Basefs over the file systems it mounts on is just 0.8-2.1%. This minimum overhead is below the 3-10% degradation previously reported for null-layer stacking[8,22]. In addition, the overhead of the example file systems due to new file system functionality is greater than the basic stacking overhead imposed by our templates in all cases, even for very simple file systems. With regard to performance, developers who extend file system functionality using FiST primarily need to be concerned with the performance cost of new file system functionality as opposed to the cost of the FiST stacking infrastructure. For instance, the overhead of Cryptfs is the largest of all the file systems shown due to the cost of the Blowfish cipher. Note that the performance of individual file systems can vary greatly depending on the operating system in question.

Figure 10 also shows the benefits of having FiST customize the generated file system infrastructure based on the file system functionality required. The comparison of Basefs+ versus Basefs shows that the overhead of including code for manipulating file names and file data is 4.2-4.9% over Basefs. This added overhead is not incurred in Basefs unless the file systems derived from it requires file data or file name manipulations. While Cryptfs requires Basefs+ functionality, Snoopfs, Aclfs, and Unionfs do not. Compared to a stackable file system such as Wrapfs, FiST's ability to conditionally include file system infrastructure code saves an additional 4% of performance overhead for Snoopfs, Aclfs, and Unionfs.

We also performed several micro-benchmarks which included a series of recursive copies (cp -r), recursive removals (rm -rf), recursive find, and ``find-grep'' (find /mnt -print | xargs grep pattern) using the same file set used for the large compile. The focus of this paper is not on performance, but on savings in code size and development time. Since the micro-benchmarks confirmed our previous good results, we do not repeat them here[27].

Finally, since we did not change the VFS, and all of our stacking work is in the templates, there is no overhead on the rest of the system; performance of native file systems (NFS, FFS, etc.) is unaffected when our stacking is not used.
